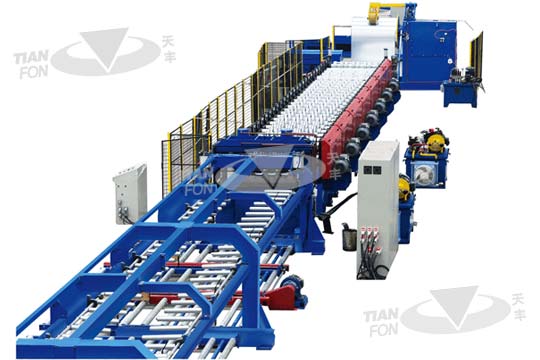

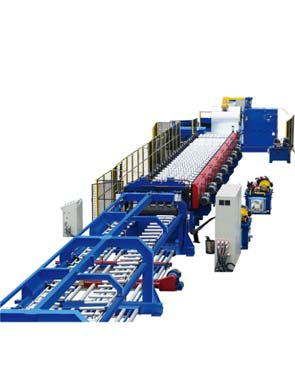

Профилировачная линия для профнастила стенного

Обзор машины:
The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
  • Описание
  • Подробности
  • Видео

Компоненты

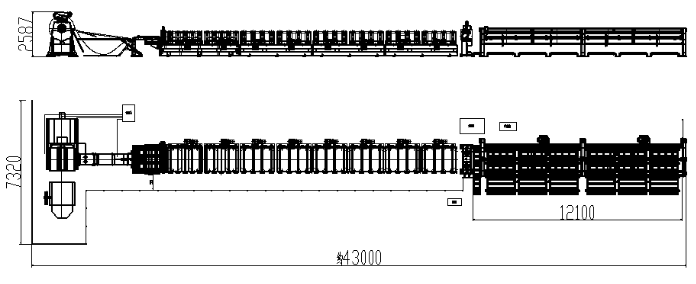

                                                      Uncoiling – feeding - roll forming – cutting – stack;



Спецификации

Equipment overview:

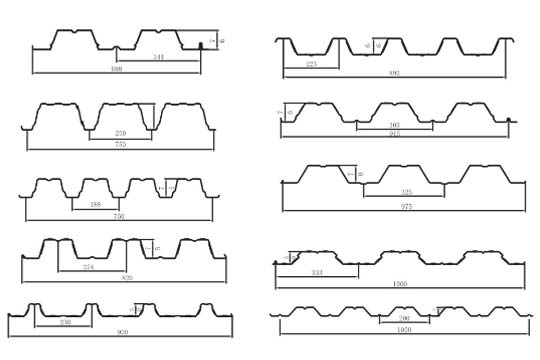

1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. TF70-320-921 deck/ roof panel NC high speed production line, whose production speed can reach 40m/min (includes cutting), multiple profiles can be produced through quick change cassette. PLC central control whole line, includes loading, uncoiler, pre-cutter, roll forming, servo flying cutter, stacker, discharging. HIM operateing, the whole line just needs one operator, many groups data can be set by one time, automatic producing, allocated with remote control, safety light curtain etc whole security systems, which is approved by CE. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.



Технические параметры

Serial number Item Unit Parameters Remark

1

Suitable material
Type   galvanized steel
strength MPa ≤350
Thickness mm 0.7—1.5mm
Coil internal diameter mm 500,600
Coil weight T 10

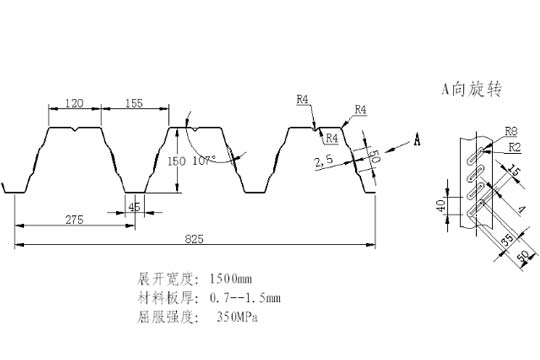

2 Specification mm 120
3 Line speed m/min 25
4 Roller material   45# steel, with hard chrome on surface, polishing
5 Roller driven type   External chain transmission
6 Operating system   Windows2000
7 Total motor power Kw 7.5
8 Power supply   PLC automatic control system
9 Dimension(L*W*H) m
